The HT Coupler range is for the mechanical connection of deformed steel reinforcing bars complying with TheCalifornia Department of Transportation (Caltrans) authorization testing.
The HT.S Coupler is suitable for connecting two bars where at least one bar can be rotated.

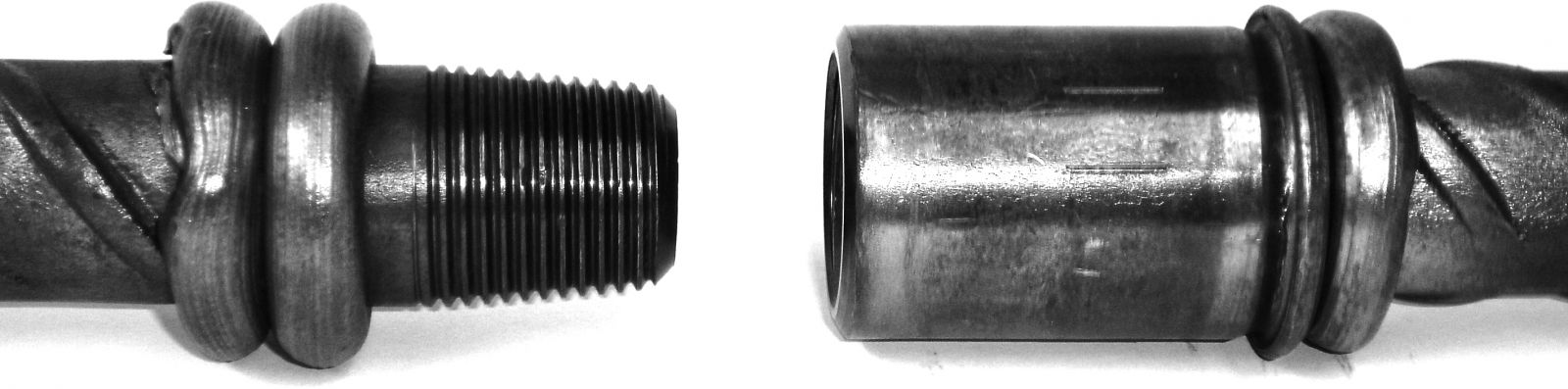

StandardCoupler4_18034_110104.JPG "HT.S Coupler")
Both male and female sections of the HT coupler joint are always delivered to site welded to the appropriate re-bar.
The formation of the joint is achieved by screwing the two sections together, ie male and female elements.
The joint should always be tightened by the use of a wrench, until there is no further movement available between the two sections.
NO TORQUE WRENCH REQUIRED
| HT.S.M - Standard Male Thread | HT.S.F - Standard Female Coupler |

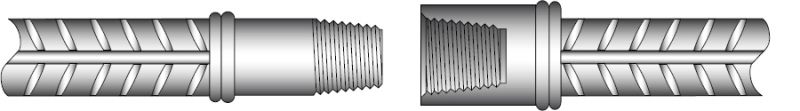

The Two Sections are brought together.
The joint is then screwed together using a wrench.

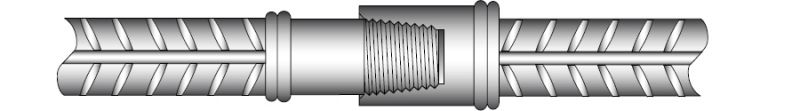

Finished joint tightened until there is no further movement between sections.
| Coupler Ref | Bar Size Designation | Dimensions (inch) | ||||
|---|---|---|---|---|---|---|
| A | B | C | D | E | ||
| HT.S.4 | #4 | 12 | 12 | 112 | 34 | 118 |
| HT.S.5 | #5 | 34 | 58 | 158 | 1 | 114 |
| HT.S.6 | #6 | 34 | 34 | 134 | 1 | 158 |
| HT.S.7 | #7 | 78 | 78 | 178 | 118 | 178 |
| HT.S.8 | #8 | 1 | 1 | 218 | 138 | 2 |
| HT.S.9 | #9 | 118 | 114 | 238 | 112 | 218 |
| HT.S.10 | #10 | 114 | 114 | 212 | 158 | 212 |
| HT.S.11 | #11 | 138 | 138 | 234 | 134 | 258 |
| HT.S.14 | #14 | 158 | 134 | 3 | 218 | 318 |
