HT.S Weldable Coupler

The HT.S Weldable Coupler provides a quick and easy solution for connecting reinforcement to structural steel sections or plates.

Similar to the standard coupler, the weldable coupler is internally threaded on one end, with the other end prepared for welding.

The couplers are usually arc welded to the structural steel. All weld joint designs must be to the project engineer’s instructions.

  • Quick and easy
  • Cost effective
  • Readily available

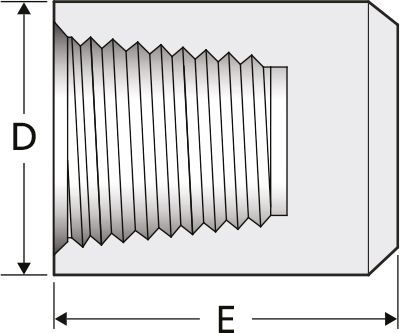

Dimensions

Coupler RefBar Size DesignationDimensions (inch)
DE
HT.S.4#434118
HT.S.5#51114
HT.S.6#61158
HT.S.7#7118178
HT.S.8#81382
HT.S.9#9112218
HT.S.10#10158212
HT.S.11#11234258
HT.S.14#14218318
