HT.A Anchor Head

The HT.A Mechanical Anchor is an oversized end anchor secured to the end of a length of reinforced steel, creating anchorage within the concrete.

It replaces conventional hooked rebar thereby reducing congestion. The installation is simple and quick allowing for a reduction in placement costs.

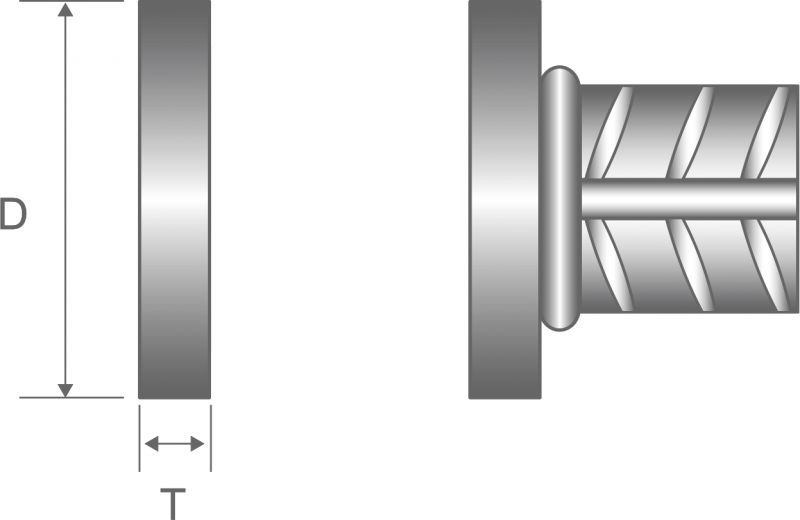

Dimensions


Coupler Dimension (Inch)
Coupler Ref.Rebar DiameterDiameter (D) *Thickness (T) *
HT.A.5#5211658
HT.A.6#62341316
HT.A.7#731878
HT.A.8#831878
HT.A.9#93341
HT.A.10#10418118
HT.A.11#11412114

* Tolerance ±1/8

For more information, please contact . . .

Patrick Turner

  • Telephone: 619-847-2864
  • Email: pturner@hy-tenusa.com
  • HY-TEN USA, 880 Columbia Ave., Suite 4, Riverside, CA 92507USA
